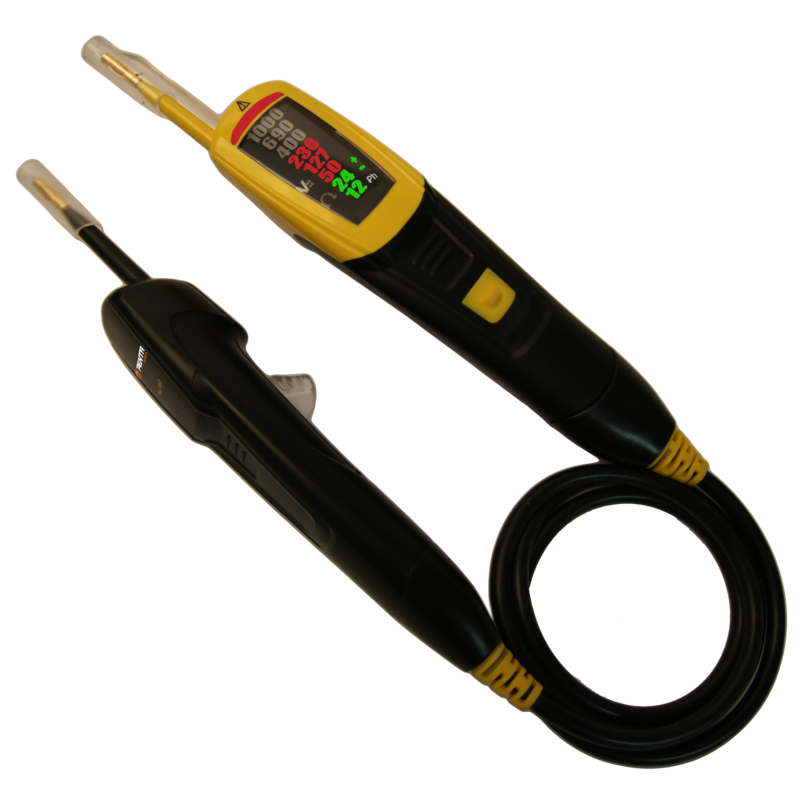

TAG780V IP2X

/ Standards

IEC 61243-3: VOLTAGE DETECTORS – PART 3: TWO-POLE LOW-VOLTAGE TYPE

CE compliante

/ Use

The Low Voltage Detector allows the following functions to be implemented on both indoor and overhead installations:
• Check for the proving dead operation
• Control voltage levels
• Polarity test on DC voltage (+/-)
• Discrimination phase / neutral
• Phase indication (unipolar)
• Continuity test (below 80 Ω)
• Integrated self-test
• Lighting of tested point
electrical-detection / TAG780V IP2X 📁 / penta-catchprase-complement

Advantages

New generation of display, ultra bright, visible in full light and indirectly

Audible differentiated: intermittent voltages up to 230V and from 400V continuous.

IP2X protection on probe: retraction by a trigger on the back of the device, exclusive solution guaranteeing a control of the protection removal and a visual safety on the contact

Response time les than 0,5 s.

Overvoltage CATegory: CAT IV 1000 V

Protection class: IP 65, IEC 60529 (DIN 40050)

Integrated self-test allowing to test: the whole electronic circuit, the sound and light indications and the continuity of the cable.

Cable with double insulation silicone : robust and highly flexible (no memory effect), length 1m ~

/ Technical specifications

Power type : DC Voltaghe, AC Voltage

Nominal voltage rate : 12 to 1000 V AC/DC

Display voltage levels : 12V AC/DC, 24V AC/DC, 50V AC/DC, penta-pim-display-voltage-levels/127v-acdc, 230V AC/DC, 400V AC/DC, 690V AC/DC, 1000V AC/DC

Color : Black / Yellow

Network frequency (Hz) : 15-60

Use condition : Indoor, Outdoor

Temperature of use (C°) : -15… +45

Hymidity (Max) (%) : 96

Battery type : 1,5V battery AAA (x2)

Case material : ABS

Dimensions (mm) : 304 x 75 x 60 mm

Weight (kg) : 0,290

Neutral phase : Unipolar phase checking (available on each probe)

Continuity test : Below 80 Ω

Probes : IP2X

Acoustic sound level (dB) : 55 dB

Clear and permanent marking
