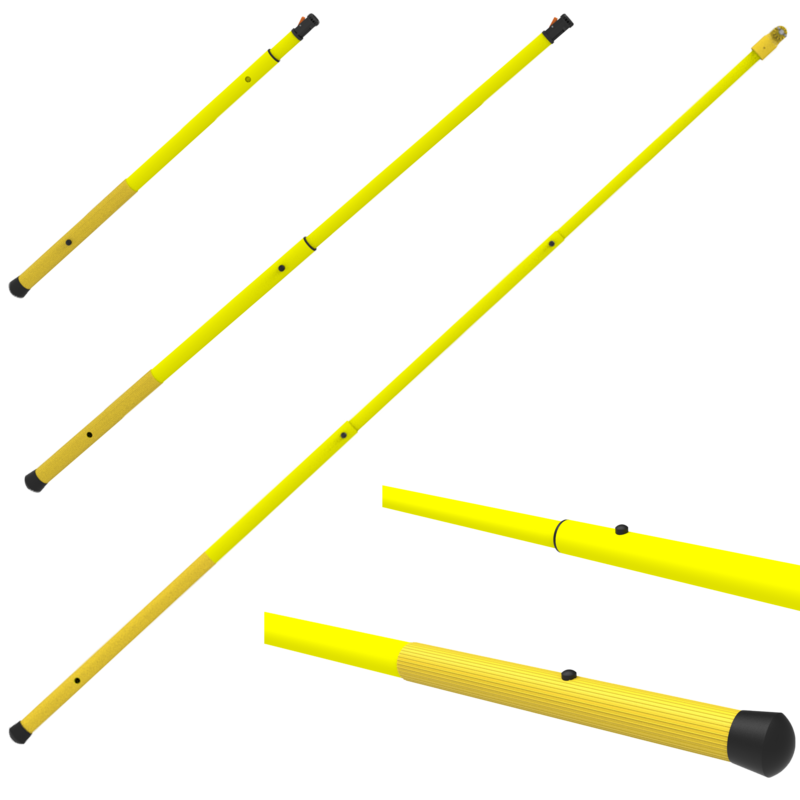

Perches TR – TRL
/ Standards
CEI 61235CEI 60855-1ASTM F711/ Use
Insulated pole LV/HV for use in all weather conditions:
• Voltage detection
• Grounding
• Switching disconnectors
• Remote work requiring mechanical stress with medium load.
• Upper tube made of fiberglass composite on foam, IEC 60855-1 quality, yellow color.
• Intermediate and lower tubes made of yellow fiberglass composite, Ø 48, 39, or 32 mm, IEC 61235-S quality.
• Push-button lock in folded or extended position.
• Ribbed sheath for good grip.
• Base equipped with a protected connector for optional extension on models TR275, TR2225, and TR2245 (see reference table).
The operating voltages comply with the minimum insulation length requirements of IEC 61243-1 for VATs.
• Voltage detection
• Grounding
• Switching disconnectors
• Remote work requiring mechanical stress with medium load.
• Upper tube made of fiberglass composite on foam, IEC 60855-1 quality, yellow color.
• Intermediate and lower tubes made of yellow fiberglass composite, Ø 48, 39, or 32 mm, IEC 61235-S quality.
• Push-button lock in folded or extended position.
• Ribbed sheath for good grip.
• Base equipped with a protected connector for optional extension on models TR275, TR2225, and TR2245 (see reference table).
The operating voltages comply with the minimum insulation length requirements of IEC 61243-1 for VATs.
• TR: Classic – tube on foam, Ø 32 mm terminal
• TRL: Lightweight – tube on foam, Ø 26 mm terminal (30% weight reduction compared to the Classic TR)
Reference with G: pole consisting of sheath and hand guard
