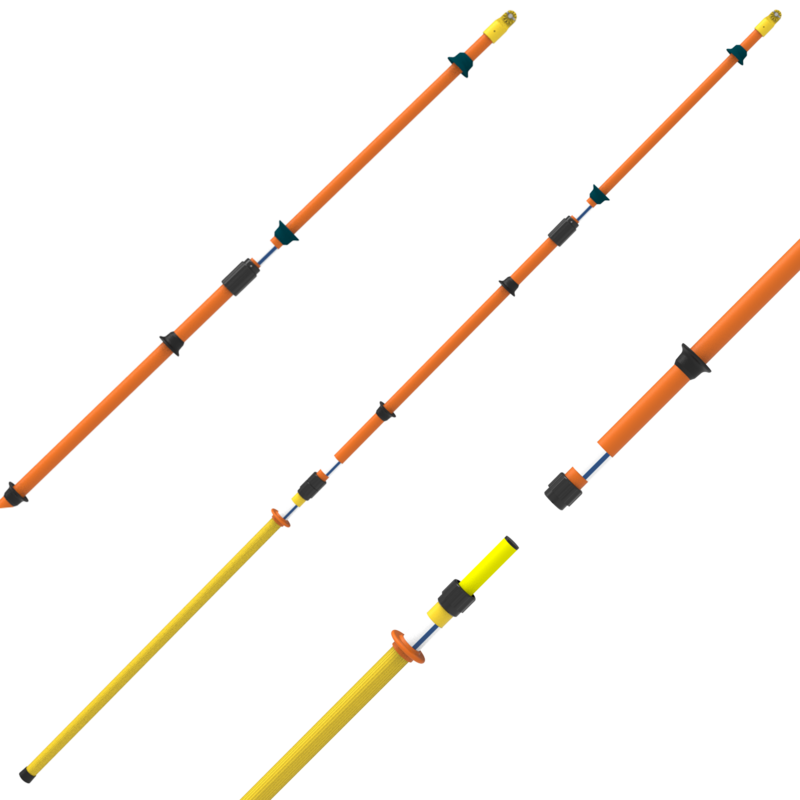

Perches – RTTE

Insulated pole for performing voltage absence verification (VAT) operations.
This equipment is designed for the safe lockout of all networks, whether AC or DC.

Lightweight, portable, and extremely robust. Can be used in a wide range of temperatures (-25 to 55°C) and indoors or outdoors.
The length of the shaft, defined by a hand guard, ensures a good grip on the pole.

RTTE insulating poles can be single-piece for voltages up to 36kV, or three-piece for voltages above 36kV.
This ensures that the insulation length relative to the nominal operating voltage is always respected.

Two skirts per element (excluding pole and RTTE63 terminal element)
Physical hand guard
Shaft with grip sleeve
Enveloping cap at the lower end

Extensions:
RE115: 1.5 m, 1.2 kg
RE165: 1.65 m, 1.65 kg
RE215: 2.15 m, 2 kg
