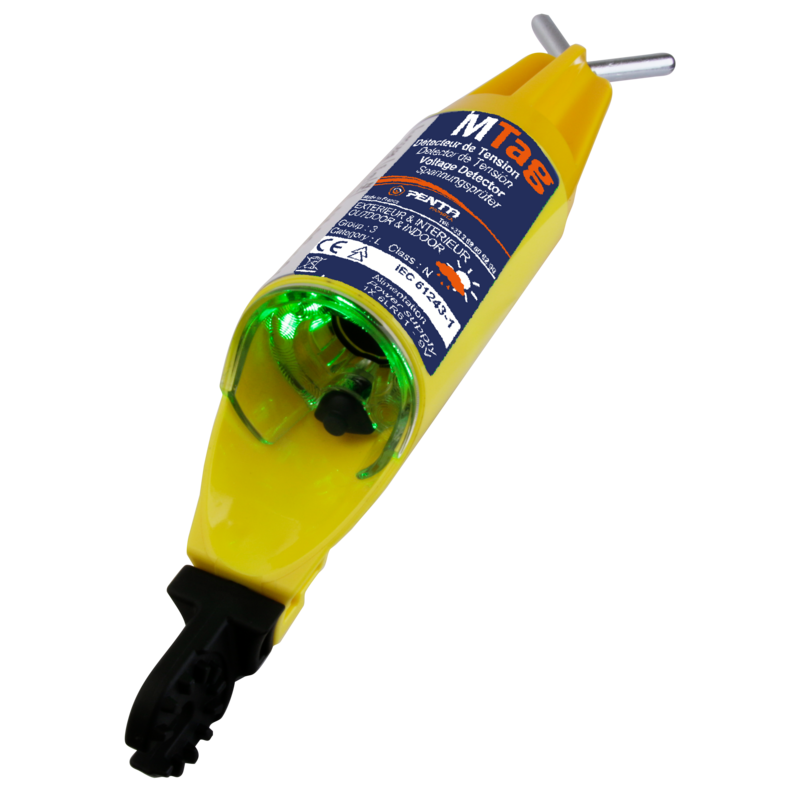

MTAG
/ Standards
IEC 61243-1: VOLTAGE DETECTORS CAPACITIVE TYPE TO BE USED FOR VOLTAGES EXCEEDING 1 kV A.CCE compliante/ Use
These voltage detectors are designed for “proving dead”, making sure that nominal voltage is actually absent on a circuit in an HV distribution system between 1 kV and 69 kV (no-voltage verification):
• The device will detect any nominal voltage on overhead lines and stations.
• It will avoid detecting most induced voltages in order to allow grounding operations.
• The device will detect any nominal voltage on overhead lines and stations.
• It will avoid detecting most induced voltages in order to allow grounding operations.
Advantages
The self test checks all the circuits, the reference detection level and the battery voltageLoud indication sound (100 dB at 1m).The visual indication is visible in all positionsDirect access to the battery and sealed electronics compartment (IP65)Permanent standby status with automatic wake up functionThe presence of voltage within the calibrated range or above is indicated by a RED light and a beeping soundSelf test OK: The OK status (ready for use) of the device is indicated by a GREEN lightThe “ready for use” state is indicated by the green indication for 2 minutesA low battery level is indicated by an ORANGE lightRemovable and interchangeable stick end fitting/ Technical specifications
Power type : AC VoltageColor : YellowNetwork frequency (Hz) : 50/60Use condition : Indoor, OutdoorTemperature of use (C°) : -25…+55Hymidity (Max) (%) : 96Battery type : 9V battery (x1)Case material : PolycarbonateDimensions (mm) : 280 x 59 x 59Weight (kg) : 0.390Acoustic sound level (dB) : 100 dB
