LW11-43
/ Standards
IEC 60832-2/ Use

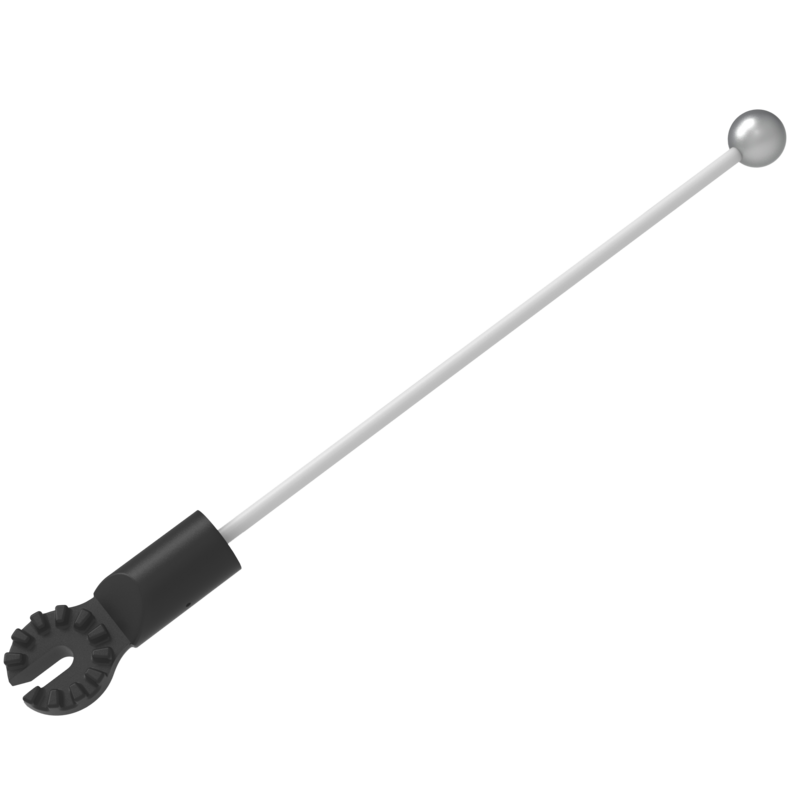

The insulating rod with a weight is used to detect, by percussion, the presence of anomalies on insulating columns and ceramic insulator chains.
The sound emitted at the moment of impact allows the detection of defects, such as cracks.
Universal tip made of synthetic material.
Spherical weight made of corrosion protected metal.
Flexible insulating rod made of synthetic fibres.
Length: 200 mm / 7,87’’
Feeder diameter: 20 mm / .8’’
The sound emitted at the moment of impact allows the detection of defects, such as cracks.
Universal tip made of synthetic material.
Spherical weight made of corrosion protected metal.
Flexible insulating rod made of synthetic fibres.
Length: 200 mm / 7,87’’
Feeder diameter: 20 mm / .8’’
/ Technical specifications
Pole kind : Pole accessoriesOperating voltage (V) : HTBPole adaptators : Universal (U)Accessory weight (kg) : 0,1Accessory weights (lbs) : 0,22
