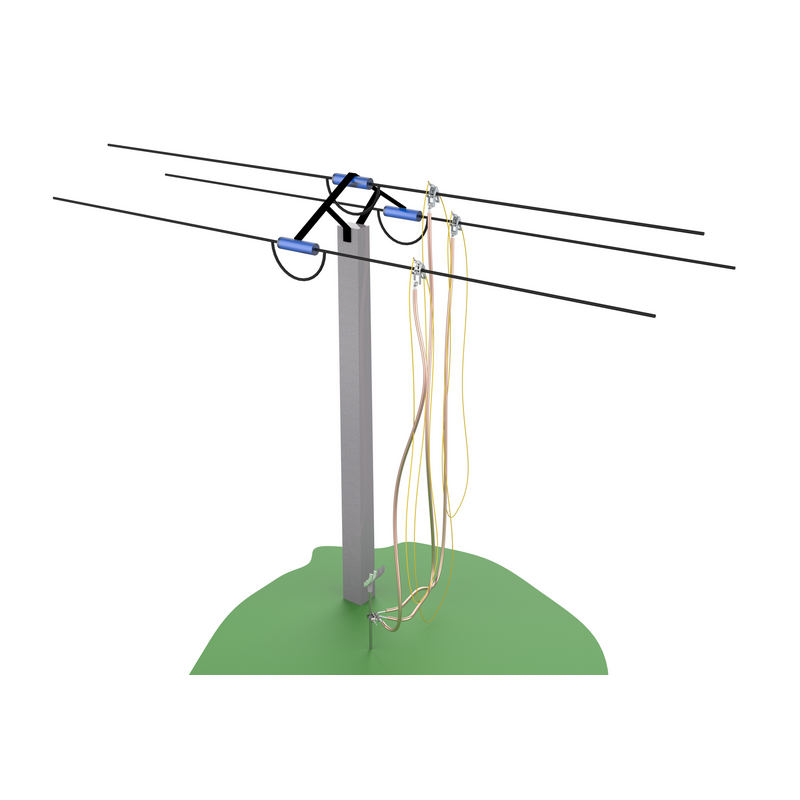

The clamp is positioned and unhooked from the ground using an insulating rope passed over the conductor.
The e-clamp is positioned on the conductor by pulling on the 1st rope.
It is then unhooked by pulling on the 2nd cord.
The rope is passed over the conductor using a telescopic pole fitted with an intelligent hook.
The e-clamp is positioned on the conductor by pulling on the 1st rope.
It is then unhooked by pulling on the 2nd cord.
The rope is passed over the conductor using a telescopic pole fitted with an intelligent hook.
Advantages
Easy to use on all types of terrain without climbingAutomatic spring clamp, no manual tightening requiredLow weight constraintsFast and easy to useInstallation of a very high ground malt from the ground level/ Technical specifications
Product kind : Earthing equipment/kitsField of use (environment) : Aerial or transformation stationClamp material : AluminiumClamp tightenning (mm) : Ø3 à 32mmConductor type : RoundPhase cable number : 2Operating voltage (V) : HTAWay of access : From the floorMeasurement : 500x450x250mmPhase câbleFloor cableInsulating rope : 3 x 25m| Product reference | Phase(s) cable cross-section (mm²) | Phase(s) cable length (m) | Cross-section (mm²) | Floor cable lenght (m) | Short-circuit intensity kA/1s | Weight (kg) | Technical sheet | Quantity |
|---|---|---|---|---|---|---|---|---|
| GWIR8HN | 35 | 15 | 35 | 15 | 8 | 22 |
123456789101112131415161718192021222324252627282930313233343536373839404142434445464748495051525354555657585960616263646566676869707172737475767778798081828384858687888990919293949596979899100
|
|
| GWIR8HP | 35 | 15 | 35 | 15 | 8 | 25 |
123456789101112131415161718192021222324252627282930313233343536373839404142434445464748495051525354555657585960616263646566676869707172737475767778798081828384858687888990919293949596979899100
|
|
| GWIR13HN | 50 | 15 | 50 | 15 | 13 | 29 |
123456789101112131415161718192021222324252627282930313233343536373839404142434445464748495051525354555657585960616263646566676869707172737475767778798081828384858687888990919293949596979899100
|
|
| GWIRE13HPIS | 50 | 18 | 50 | 18 | 13 | 35 |
123456789101112131415161718192021222324252627282930313233343536373839404142434445464748495051525354555657585960616263646566676869707172737475767778798081828384858687888990919293949596979899100
|
|
| GWIR13HP | 50 | 15 | 50 | 15 | 13 | 32 |
123456789101112131415161718192021222324252627282930313233343536373839404142434445464748495051525354555657585960616263646566676869707172737475767778798081828384858687888990919293949596979899100
|
